Part I: The Core Function — From "Traffic Cop" to "Precision Dosing"

When industry professionals hear "Flow Balancer," many immediately think of network IT (load balancers for servers). However, in the physical world of Industrial IoT (IIoT) and manufacturing, a Flow Balancer serves a dual, critical function: Material Flow Regulation and Network Data Equalization.

1. Gravimetric Material Control (The Industrial Core)

In sectors like food processing, chemicals, and milling, a Flow Balancer functions as a high-precision continuous weigher. Unlike traditional valves that simply open or close, modern flow balancers utilize load cell technology to perform real-time gravimetric proportioning.

Functionality: By using specialized inlet spouts and pneumatic control gates, systems like those developed by WUXI HASEN measure the weight of material passing through a chute in real-time. The system utilizes a PLC program to compare the setpoint (desired flow) against the actual load cell reading.

The Algorithm Advantage: Advanced PID (Proportional-Integral-Derivative) control algorithms automatically adjust the gate position. If the flow rate is too high, the gate narrows; if too low, it opens. This ensures an accuracy of up to 1% of the specified maximum capacity .

2. Digital Data Flow Equalization (The IoT Backbone)

Simultaneously, a Flow Balancer in the IoT context manages data. In a modern factory, hundreds of IoT devices send data to a central server. Without balancing, a single device can flood the gateway. Flow-based load balancing analyzes packet headers (IP addresses, ports) to ensure that every sensor gets a "fair share" of the network pipe, preventing buffer bloat and data loss .

Part II: Application Scenarios — Where Precision Meets Reality

The application of Flow Balancer technology has expanded rapidly. At WUXI HASEN, we deploy our solutions across three primary tiers of industry:

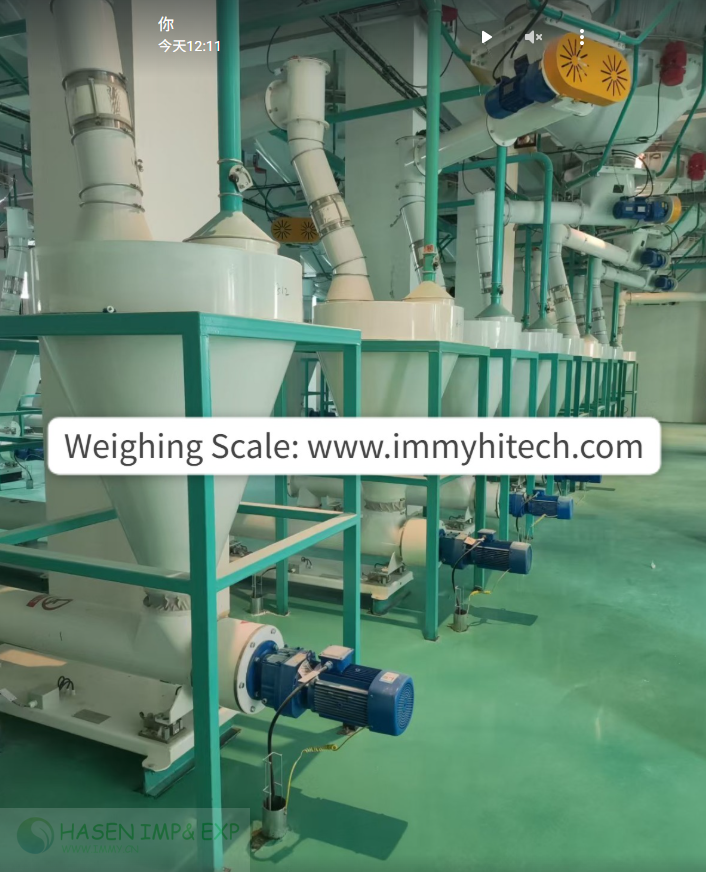

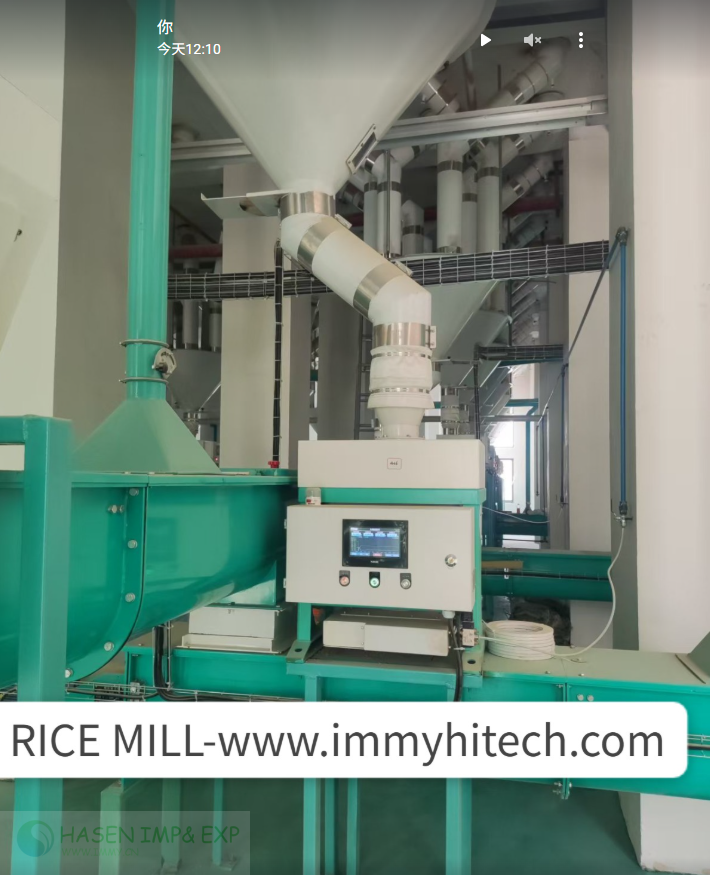

1. The Grain & Food Supply Chain

This is the most demanding sector for flow control.

Scenario: A large flour mill processing wheat.

Problem: Inconsistent grain flow causes the milling rollers to either run empty (wasting energy) or jam (causing downtime).

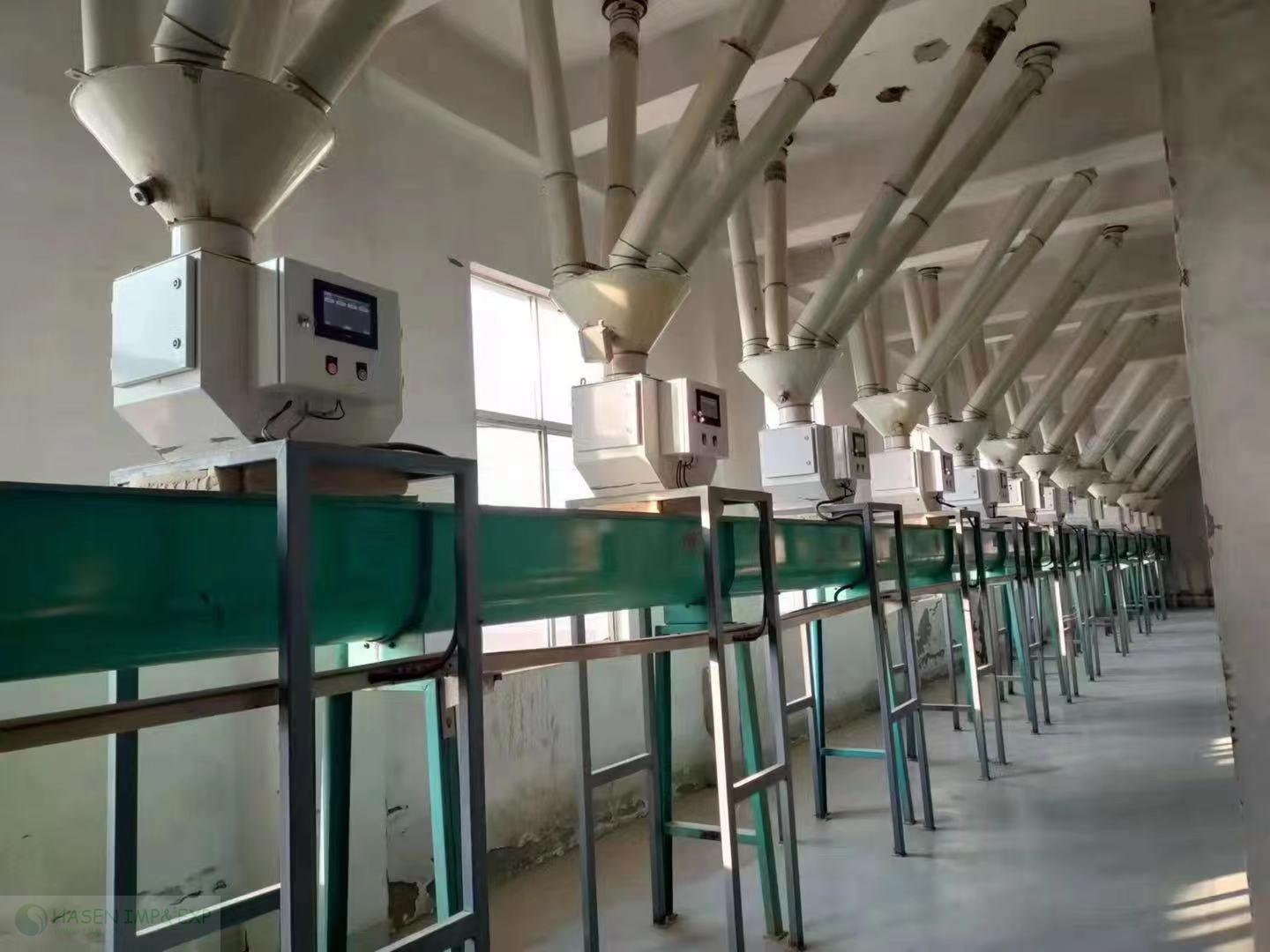

Solution: The Flow Balancer is installed in the vertical spout. It creates a steady, controlled curtain of grain. This ensures the rollers are perfectly "fed," optimizing extraction rates and flour quality .

IoT Integration: Our system doesn't just control flow; it measures it. Real-time throughput data (Tons/Hour) is sent via MODBUS TCP or PROFINET to the central control room, allowing managers to track inventory and production KPIs live .

2. Smart Factory & Chemical Dosing

Scenario: A fertilizer mixing plant.

Problem: High humidity causes "bridging" (clogging) in standard feeding systems.

Solution: Rugged, low-maintenance flow balancers with anti-wear devices. Because these systems feature sealed bearings and few moving parts, they are ideal for abrasive or corrosive products, ensuring high operating reliability without constant maintenance .

3. The Network Edge (SDN and 5G IoT)

Scenario: A remote mining site with limited satellite bandwidth.

Problem: 50 vibration sensors and 10 video feeds all try to send data at once, crashing the router.

Solution: A software-defined networking (SDN) based Flow Load Balancer (FLB) collects flow records from routers. It dynamically allocates bandwidth, prioritizing critical safety alerts over video files to ensure high availability .

Part III: Categorization — Choosing the Right Flow Balancer

Selecting the correct Flow Balancer requires moving past "one-size-fits-all" solutions. At WUXI HASEN, we categorize our product lines based on media type and environmental factors.

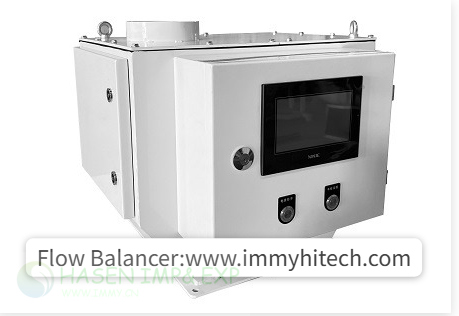

Category 1: The "Heavy-Duty" Gravimetric Balancer (Material Focused)

Target Media: Grain, seeds, plastic pellets, minerals.

Key Features:

Structure: Built with robust housing and inlet/outlet hoppers to absorb impact.

Drive System: Pneumatic diaphragm actuators (safe for explosive dust environments like Grain elevators) or Servo motors (for precise chemical dosing).

Sanitation: Options for stainless steel 304/316L to meet food-grade hygiene standards. A dedicated cleaning door is essential for this category to prevent cross-contamination .

Capacity: Ranges from 10 t/h for small feed mills up to 100+ t/h for port grain terminals.

Category 2: The "Industrial IoT" Network Balancer (Data Focused)

Target Media: Data packets (NetFlow, sFlow, IPFIX).

Key Features:

Scalability: Must support "Least Connections" and "Round Robin" algorithms to distribute traffic evenly across servers.

Resilience: Health checks (e.g., TCP port 8081) must continuously monitor back-end servers. If a server fails, the balancer automatically diverts traffic—a concept known as "High Availability" .

Protocol Support: Must handle TCP/UDP for OT (Operational Technology) devices and HTTP/HTTPS for IT dashboards .

Category 3: The Hybrid Smart Regulator (The Future)

The WUXI HASEN Advantage: Our unique niche is the convergence of these two worlds. Our Flow Balancer is not a "dumb" mechanical valve; it is an intelligent edge device.

Example: Our balancer measures the physical grain flow (Material data) and simultaneously reports its own motor temperature and vibration levels (IoT data) to your cloud platform.

Benefit: Predictive maintenance. You don't just fix a jam; you know the bearing is wearing out 100 hours before it fails.

Why WUXI HASEN Leads the Industry

Many companies sell load cells or network switches. Few understand the harsh reality of a Chinese manufacturing floor or a remote industrial site.

Rugged by Design: While IT server rooms are air-conditioned, our Flow Balancers are built for dust, heat, and vibration. Our designs incorporate low-wear components and sealed bearings to reduce proneness to trouble .

Seamless Integration: We bridge the OT-IT gap. Our hardware speaks the language of your PLC (MODBUS, PROFINET) and the language of your Cloud (MQTT, HTTP).

Cost Efficiency: As a direct manufacturer, we optimize the cost-performance ratio. You aren't paying for a brand name; you are paying for precision engineering.

Unbalanced flow is the enemy of efficiency. Whether it is a mountain of grain choking a mill or a flood of data crashing a server, the solution is the same: Intelligent, automated distribution.

At WUXI HASEN, we don't just sell hardware; we engineer flow solutions for the Fourth Industrial Revolution. We ensure your product moves smoothly, and your data moves securely.

Are you ready to optimize your production line?

Visit our official website to explore our full range of Flow Balancers and IoT gateways. Our engineering team is ready to help you select the exact specifications for your application.
