Packing machine

Packing machine Single(Double)conveyor flour( Powder type) Computer Automatic Quantitative Packaging Machine is a packaging machine designed according to the fluidity and material characteristics of powdery materials.www.immy.cn. / www.immyhitech.com

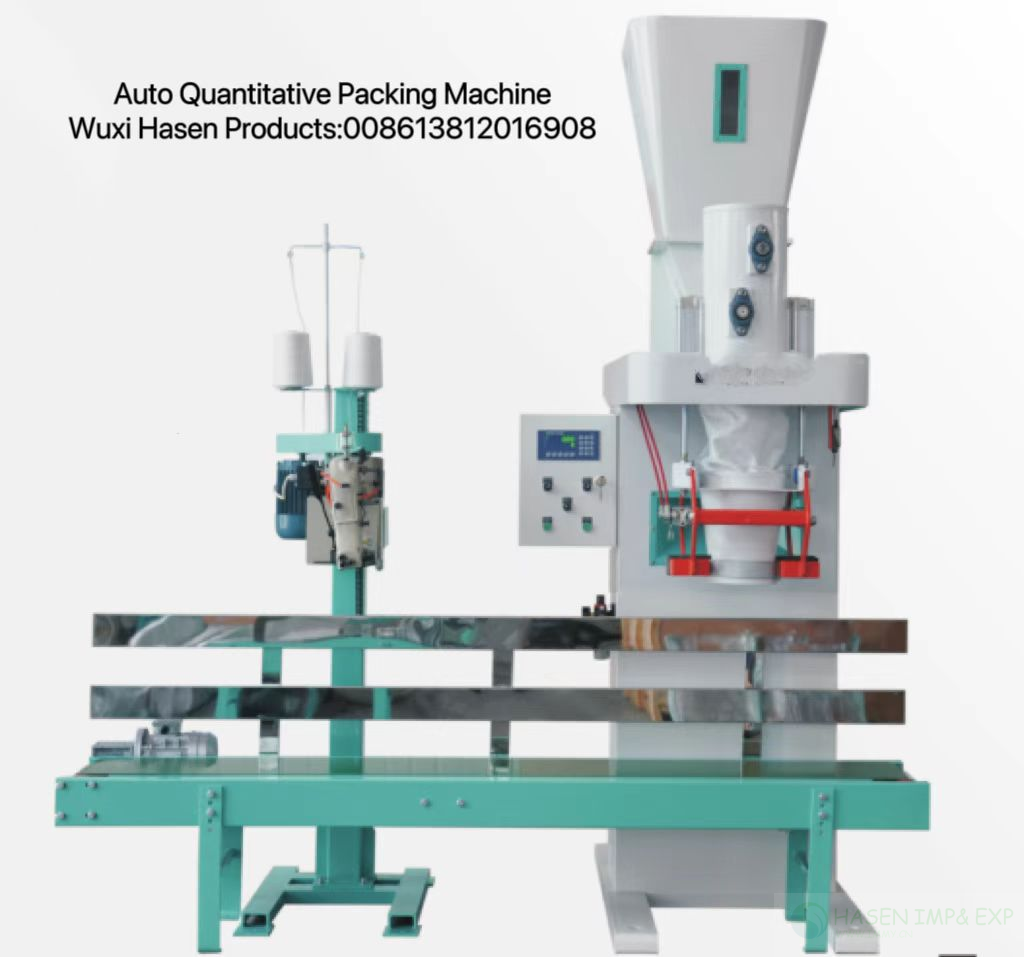

AUTO QUATITATIVE PACKING SCALE

(LCS 25CC SINGLE/DOUBEL AUTO SPIRAL FLOUR SPOUT PACK SCALE)


Single(Double)conveyor flour( Powder type) Computer Automatic Quantitative Packaging Machine is a packaging machine designed according to the fluidity and material characteristics of powdery materials.www.immy.cn / www.immyhitech.com

The LCS series single twisted dragon powder computer automatic quantitative packaging machine is a packaging machine designed based on the fluidity and special characteristics of powder materials. It has the characteristics of high weighing accuracy, simple and convenient operation, strong reliability, and complete functions. It can be widely used in the grain, building materials, warehouse storage, light industry, chemical and other powder material processing industries, automatically measuring and packaging powder materials of different densities.

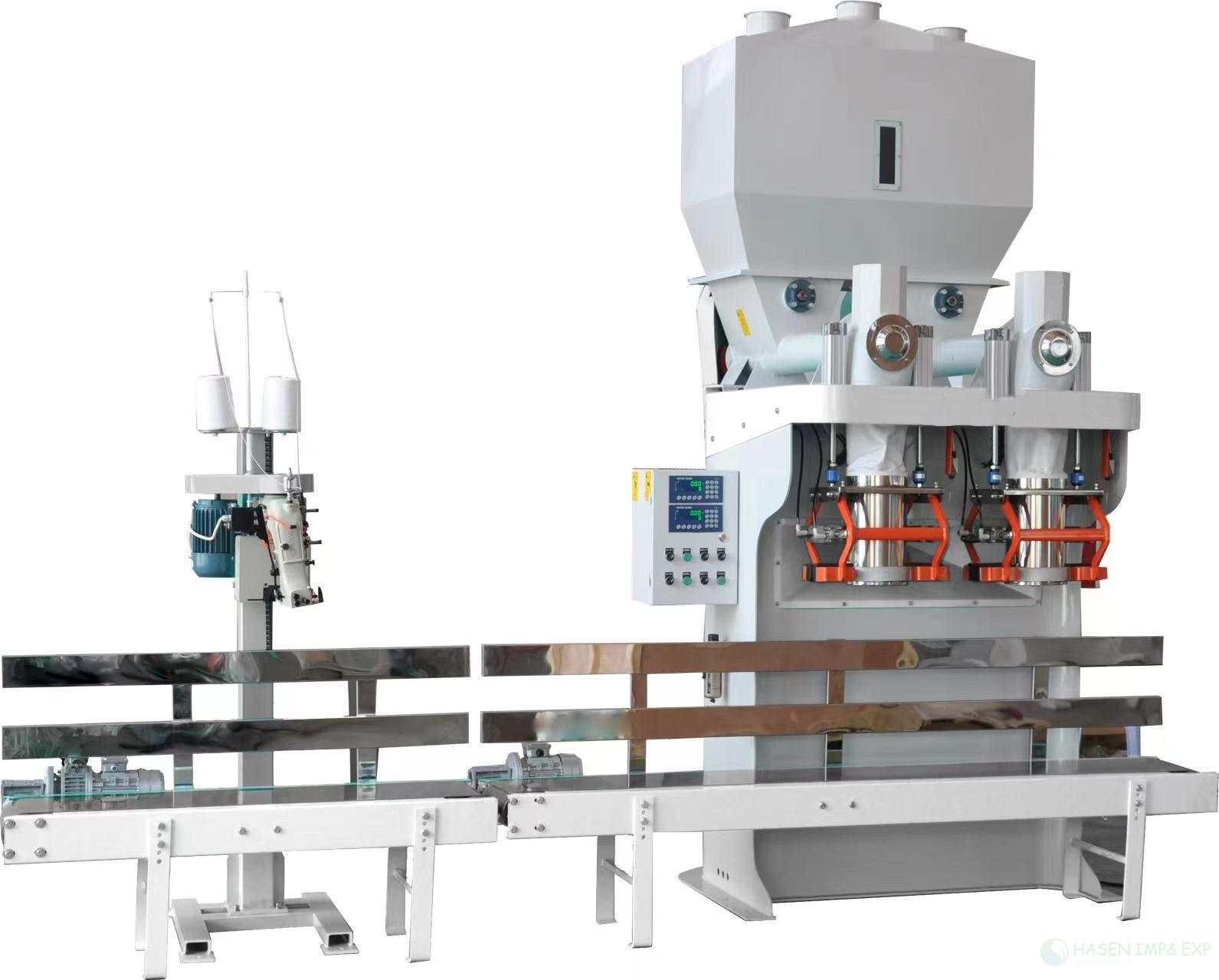

2 spout packing flour machine (3)_Copy.jpg

LCS SERIES OF SINGLE-STATION SINGLE-SPIRAL POWDER AUTOMATIC QUANTITATIVE PACKAGING MACHINE TYPICAL MATERIALS Flour, starch, potato flour, soybean flour, gluten powder, titanium dioxide, cement and other powdered materials

BASIC DEVICE

1. Storage hopper;

2. Spiral feeding and twisting device;

3. Weighing and measuring bag clamping device;

4. Weighing instrument control box;

5. Belt conveyor; 6. Sewing machine section

CONTROL SYSTEM FUNCTIONS

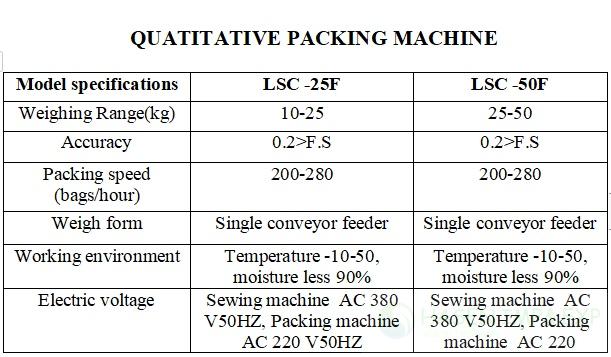

Automatically complete material packaging control function, integrating weight display, packaging timing, process interlocking, and fault alarm; ★ Equipped with automatic storage, recovery (copying) and debugging parameter functions; ★ The control parameters for automatically storing ten types of packaging weights include on duty production, cumulative number of packages, total production, and total number of packages for each type of packaging weight; ★ Touch screen display, real-time display of packaging weight, cumulative production, and number of packages; ★ Adjustable automatic peeling cycle, tapping function, keyboard encryption function, and clock display function; ★ Standard Modbus 485, Profinet, and Ethernet communication methods can connect to computers and micro printers. The instrument is connected to the computer and can print production data statistical reports; Model specifications LCS-25 LCS-50 Weighing range (kg) 10-25 25-50 Accuracy Level0.2 Allowable error ±0.2%F•S Packing speed (bag/H) 200-280 200-220 Feeding form Single screw feeding method Working environment Temperature: -10~50°C, relative humidity less than or equal to 90% Supply voltage Conveyor sewing AC380V50HZ packaging unit: AV220V50HZ Compressed air pressure 0.4~0.6Mpa.

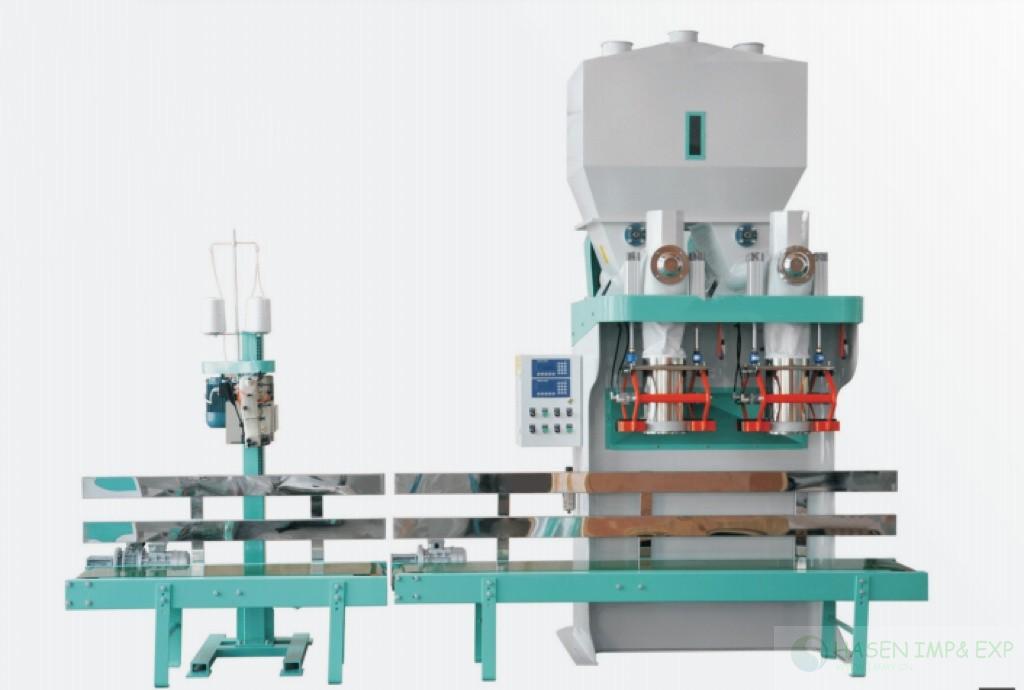

2 spout packing flour machine (4)_Copy.jpg
