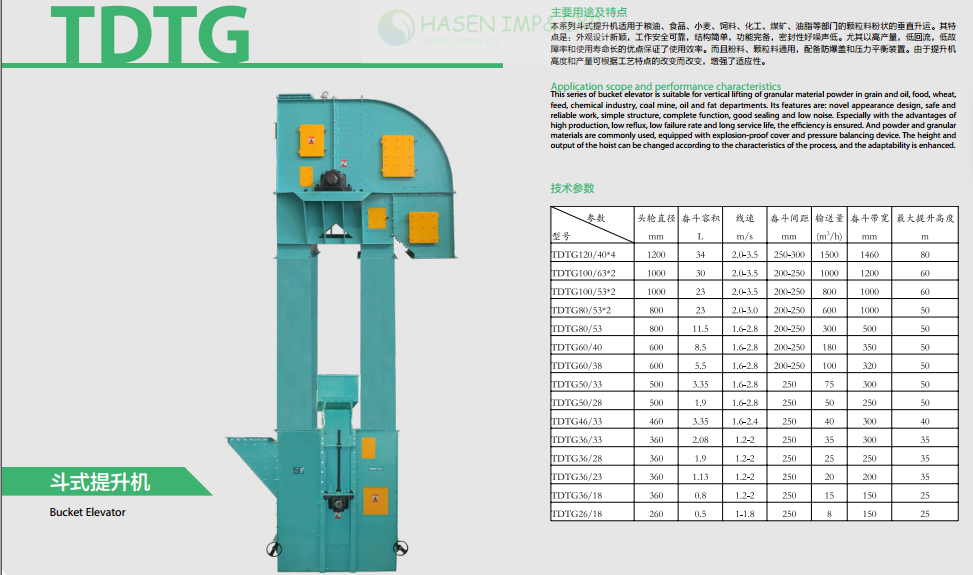

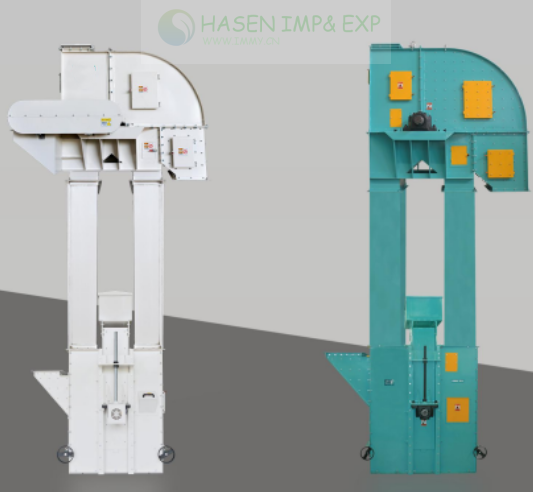

BUCKET ELEVATOR

Bucket Elevator for vertical lifting of granular materials in grain and oil, food, wheat, feed, chemical industry, coal mine, grease and other industries, We provide Integrated wheat maize flour mill EPC turnkey project from 100TPD to 3000 TPD from China.

 www.immyhitech.com

Application field:

Bucket elevator is suitable for vertical lifting of granular materials in grain and oil, food, wheat, feed, chemical industry, coal mine, grease and other industries. Its characteristics are: novel appearance design, safe and reliable work, simple structure, complete function, good sealing and low noise. In particular, the advantages of high yield, low reflux, low failure rate and long service life ensure the use efficiency. And powder, particle material universal, equipped with explosion-proof cover and pressure balancing device. Adaptability is enhanced because the hoist height and yield can be changed according to process characteristics We improved the 10T/H-2000T/H fighter hoist for different models

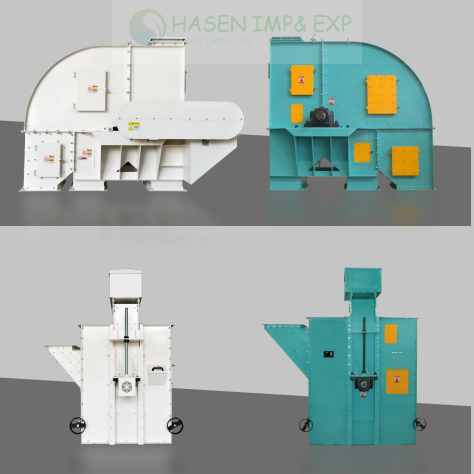

Hoist head:

     1,Prefabricated structure, easy to disassemble, easy to replace the head wheel;

2. Discharge port adjustment plate, reduce feed back, improve yield;

3. The machine head is equipped with a replaceable wear plate, which can reduce shell wear and reduce production costs:

Equipped with a backstop device to prevent blockages caused by power outages.

Hoist base:

1. Compact structure, small cross-sectional dimensions, saving floor space;

2. The base can be installed smoothly and reverse feed hopper for users to use according to their needs;

3. The packing seal is adopted to overcome the phenomenon of powder leakage and material leakage of the adjustment plate;

4. Drawer-type cleaning door or large arc bottom door, less residue, more convenient cleaning.

For more information please visit:

https://www.linkedin.com/company/28728730/admin/feed/posts/

https://www.facebook.com/maizemachinehasen/

https://www.instagram.com/flourmachine/

https://wordpress.com/post/wheatflourmill0.wordpress.com/672

https://www.blogger.com/u/0/blog/posts/4145872885004376169

https://www.tumblr.com/blog/flourmillmachine

https://youtu.be/AW1td45t0Rg

FAQ: Bucket Elevator for Vertical Lifting of Granular Materials

What is a Bucket Elevator?

A bucket elevator is a highly efficient conveying system designed for the vertical lifting of granular materials. It uses a series of buckets attached to a belt or chain that move materials upward inside an enclosed casing. Bucket elevators are widely used in grain and oil processing, food production, wheat handling, feed mills, chemical plants, coal mines, oil processing, and other industrial applications where reliable vertical material transport is essential.

Compared with inclined conveyors or screw conveyors, bucket elevators provide high lifting capacity, minimal spillage, low power consumption, and compact installation, making them one of the most important bulk material handling solutions.

What Materials Can a Bucket Elevator Handle?

Bucket elevators are suitable for a wide range of granular, powdery, and small lump materials, including:

• Grain (corn, rice, barley, soybeans)

• Wheat and flour-based materials

• Feed pellets and feed ingredients

• Edible oil seeds and oil by-products

• Sugar, salt, starch, and food additives

• Chemical granules and powders

• Coal, coke, and mineral aggregates

• Fertilizers and industrial raw materials

Because of their enclosed structure, bucket elevators are ideal for dusty, fragile, or temperature-sensitive materials.

How Does a Bucket Elevator Work?

A bucket elevator works by continuously loading material into buckets at the bottom inlet. As the belt or chain moves upward, the buckets carry the material vertically inside a casing. At the top discharge section, centrifugal force or gravity causes the material to be unloaded into the next process.

The main components include:

• Buckets (steel, plastic, or stainless steel)

• Belt or chain traction system

• Drive unit and motor

• Head and boot sections

• Enclosed casing for dust control

This design ensures stable conveying, reduced material breakage, and clean operation.

What Are the Main Types of Bucket Elevators?

1. Belt Bucket Elevator

Best suited for grain, food, wheat, feed, and oil industries.
Advantages:

• High speed

• Quiet operation

• Lower maintenance

2. Chain Bucket Elevator

Commonly used in chemical industry, coal mine, cement, and heavy-duty applications.
Advantages:

• Strong load capacity

• Suitable for abrasive or high-temperature materials

• Long service life

3. Centrifugal Discharge Bucket Elevator

Ideal for free-flowing granular materials.
Advantages:

• High capacity

• Efficient discharge

4. Continuous Bucket Elevator

Used for fragile or easily degradable materials.
Advantages:

• Gentle handling

• Minimal material damage

Why Are Bucket Elevators Widely Used in the Grain and Oil Industry?

In the grain and oil industry, vertical lifting efficiency and hygiene are critical. Bucket elevators offer:

• Enclosed structure to prevent contamination

• Smooth handling to reduce grain breakage

• High throughput for large-scale processing

• Compatibility with silos, dryers, and mills

They are commonly installed in grain storage facilities, oilseed processing plants, flour mills, and port terminals.

Are Bucket Elevators Suitable for the Food Industry?

Yes. Bucket elevators are extensively used in the food industry due to their:

• Hygienic design options (stainless steel buckets and casings)

• Easy cleaning and maintenance

• Compliance with food safety standards

• Low dust emission

They are ideal for transporting sugar, rice, flour, coffee beans, cereals, and food additives.

How Do Bucket Elevators Perform in the Chemical Industry?

In the chemical industry, materials often require careful handling due to corrosive or hazardous properties. Bucket elevators can be customized with:

• Corrosion-resistant materials

• Anti-static belts

• Sealed casings

• Explosion-proof motors

This makes them safe and reliable for chemical powders, granules, fertilizers, and additives.

Can Bucket Elevators Be Used in Coal Mines?

Yes. Bucket elevators are commonly applied in coal mines and mineral processing plants for vertical lifting of coal, coke, and ores. Chain bucket elevators are particularly suitable because they:

• Handle heavy and abrasive materials

• Operate in harsh environments

• Maintain stability under continuous operation

Their enclosed structure also helps reduce dust and improve workplace safety.

What Are the Advantages of Using a Bucket Elevator?

Key advantages include:

• High vertical conveying efficiency

• Compact footprint

• Low energy consumption

• Minimal material loss

• Reduced dust pollution

• Long service life

These benefits make bucket elevators an ideal choice across grain, oil, food, wheat, feed, chemical, coal mine, oil, and other industries.

How Do I Choose the Right Bucket Elevator?

When selecting a bucket elevator, consider:

• Type of material (granular, powder, lump)

• Capacity requirements

• Lifting height

• Operating environment

• Industry standards (food-grade, chemical resistance, etc.)

Working with an experienced manufacturer ensures the system is customized for your process requirements.

How Often Does a Bucket Elevator Require Maintenance?

Routine maintenance includes:

• Checking belt or chain tension

• Inspecting buckets for wear

• Lubricating bearings and drive components

• Monitoring motor and gearbox performance

With proper maintenance, a high-quality bucket elevator can operate reliably for many years.

Why Choose a Professional Bucket Elevator Manufacturer?

A professional manufacturer provides:

• Customized engineering solutions

• High-quality materials and components

• Compliance with international standards

• Reliable after-sales support

This ensures safe, efficient, and long-term operation in demanding industrial environments.

FINAL

A Bucket Elevator for vertical lifting of granular materials is an essential piece of equipment in the grain and oil, food, wheat, feed, chemical industry, coal mine, oil, and other industries. Its efficiency, durability, and adaptability make it the preferred solution for modern bulk material handling systems.

If you are looking for a reliable, high-performance bucket elevator solution, please contact WUXI HASEN for professional support and customized designs.
Website: www.immyhitech.com
